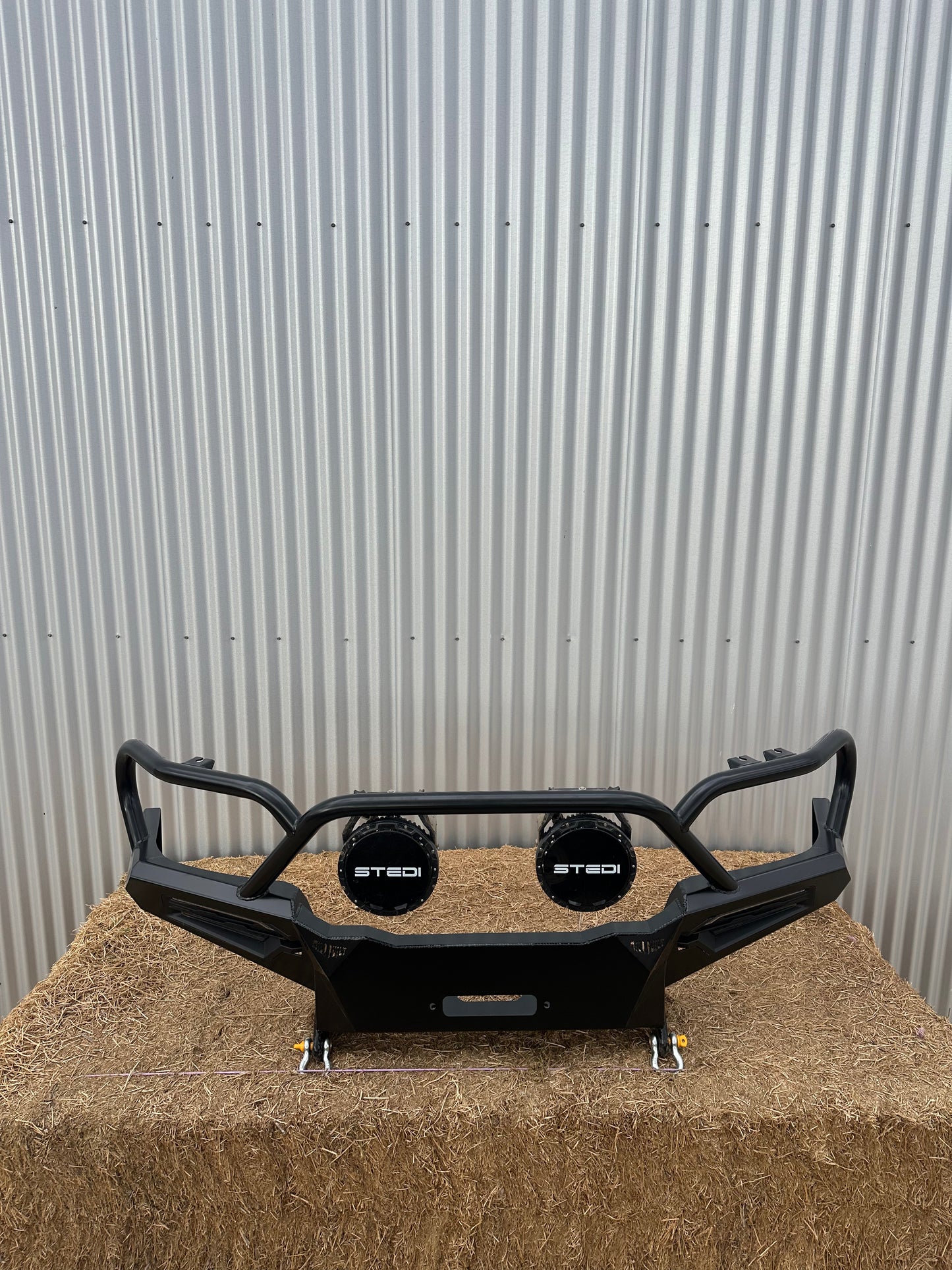

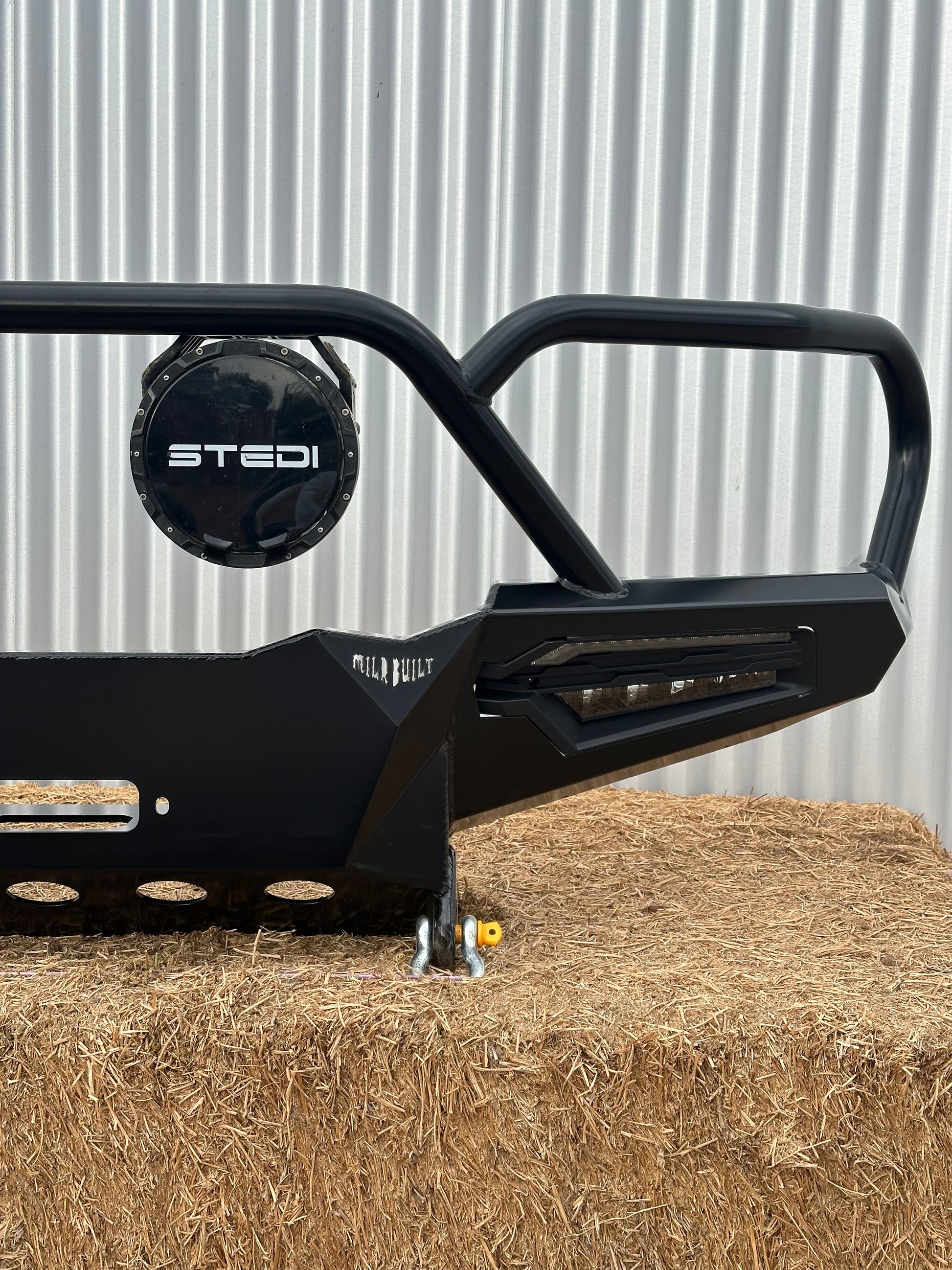

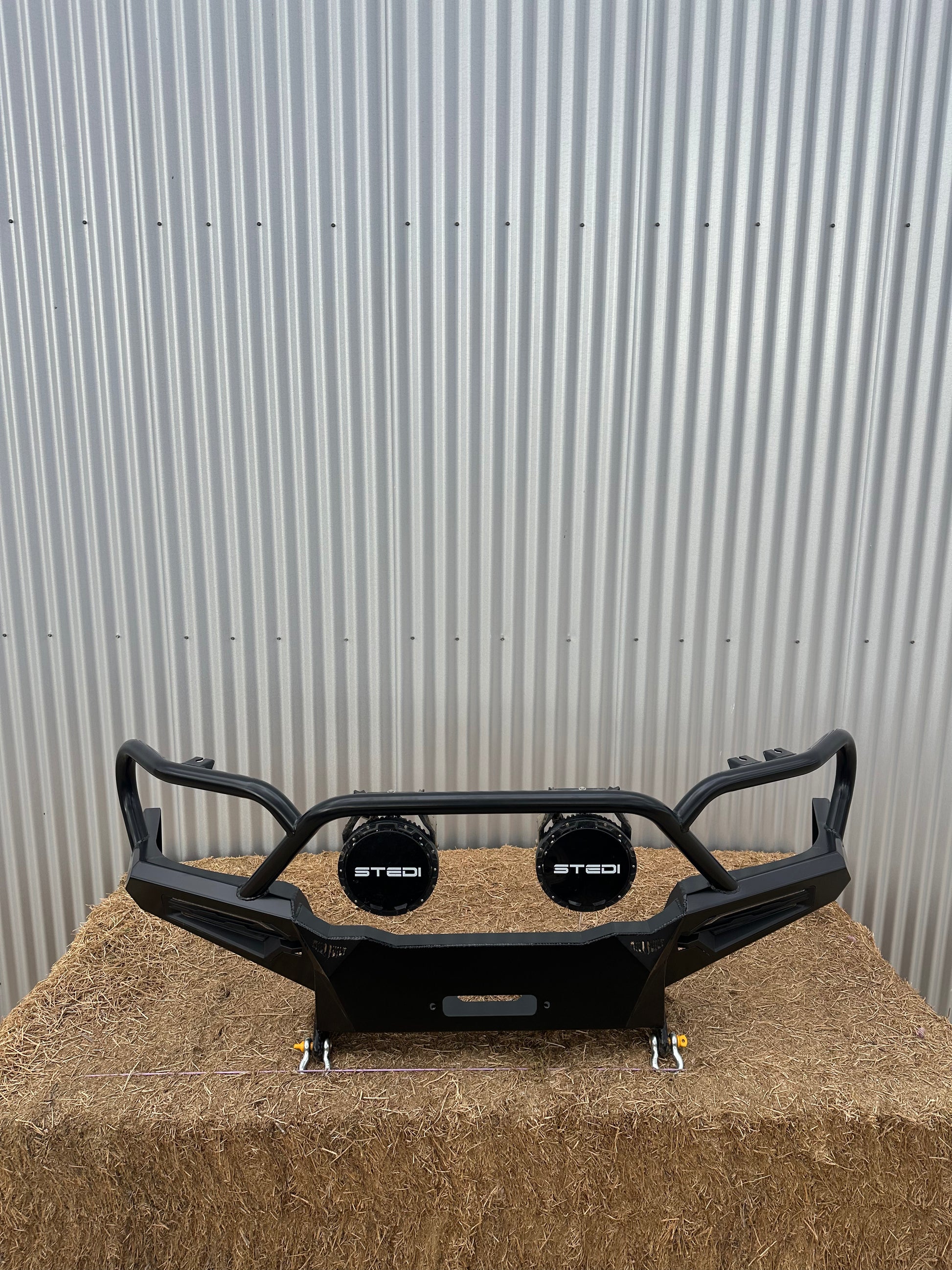

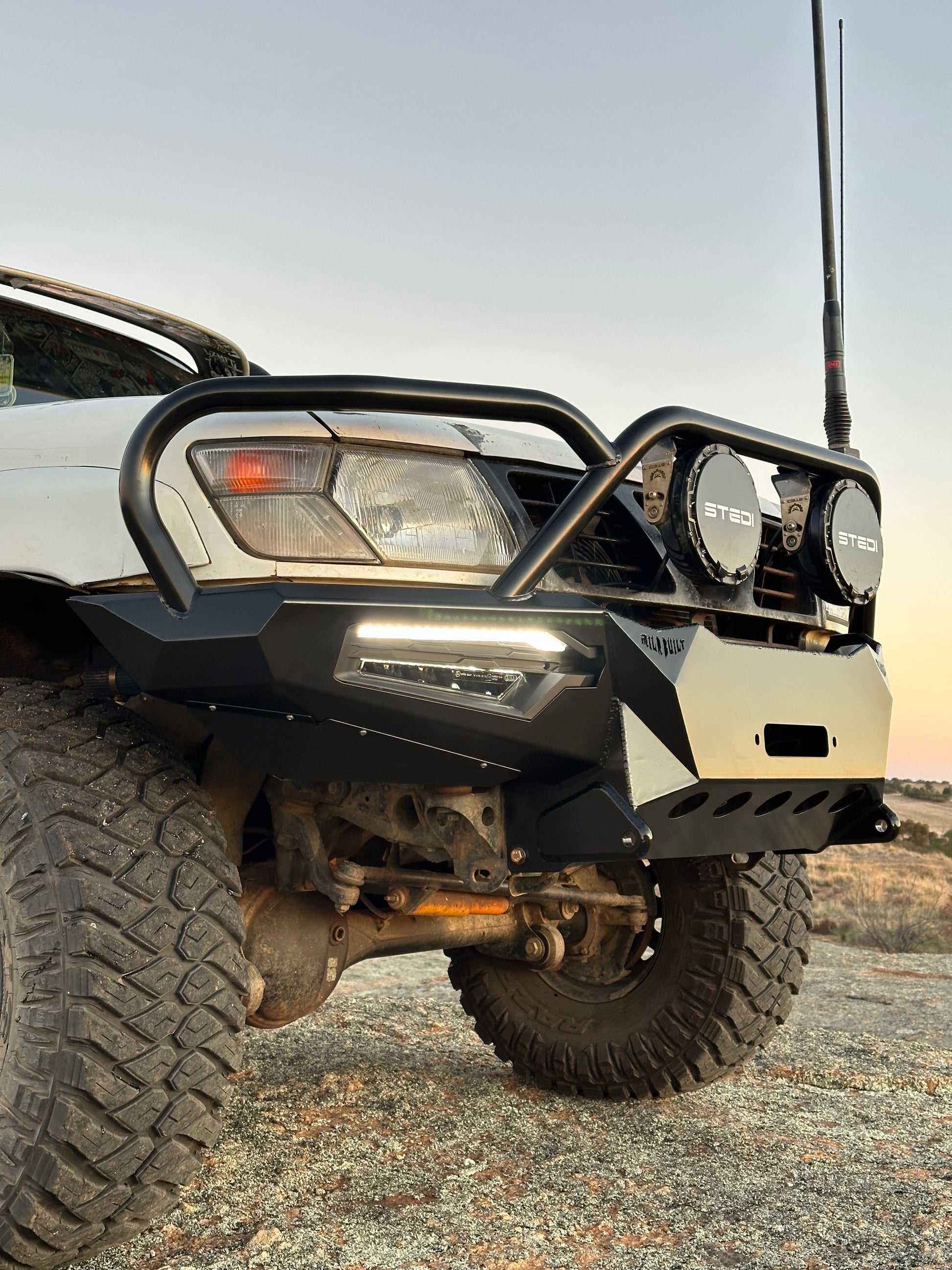

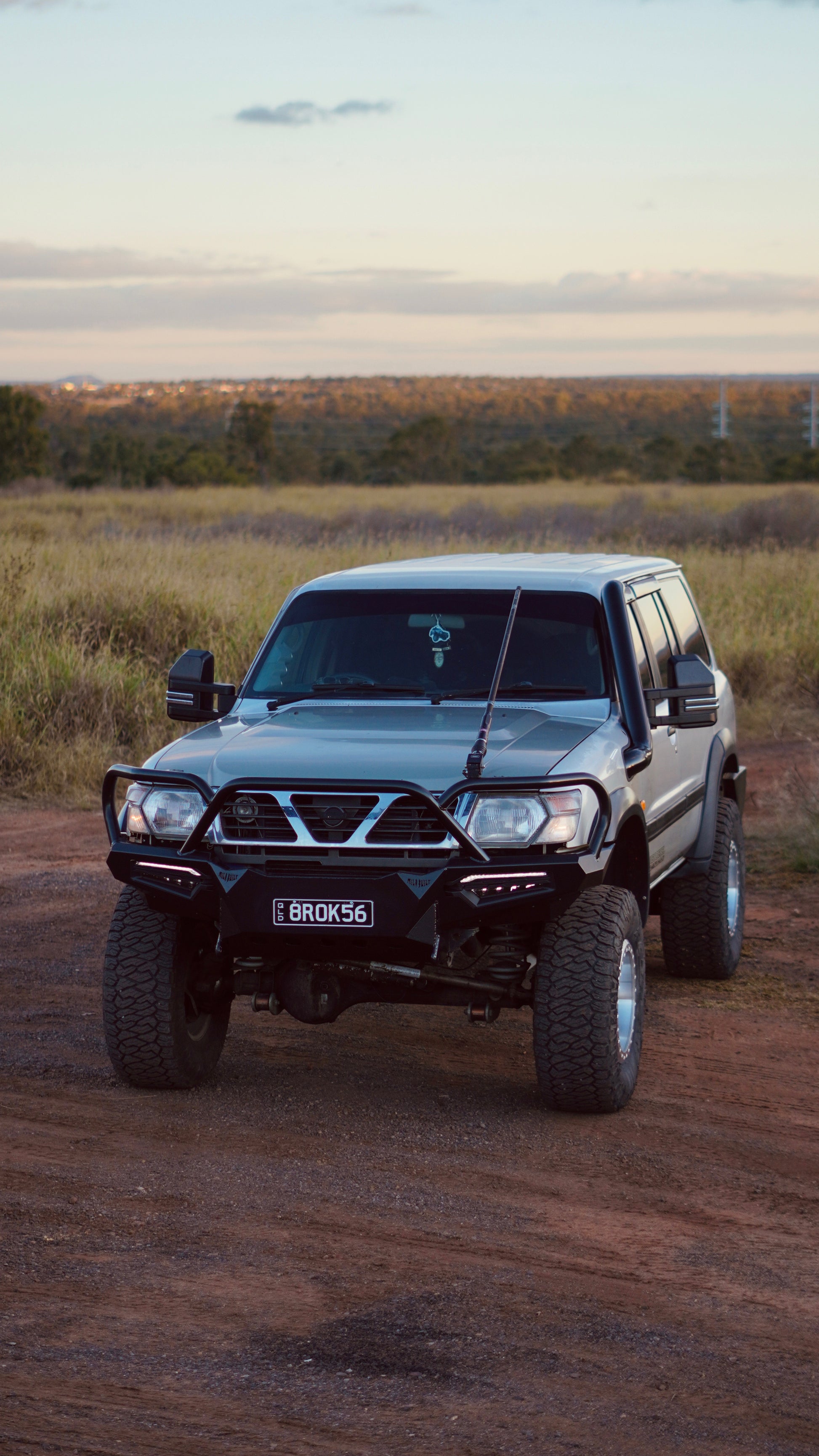

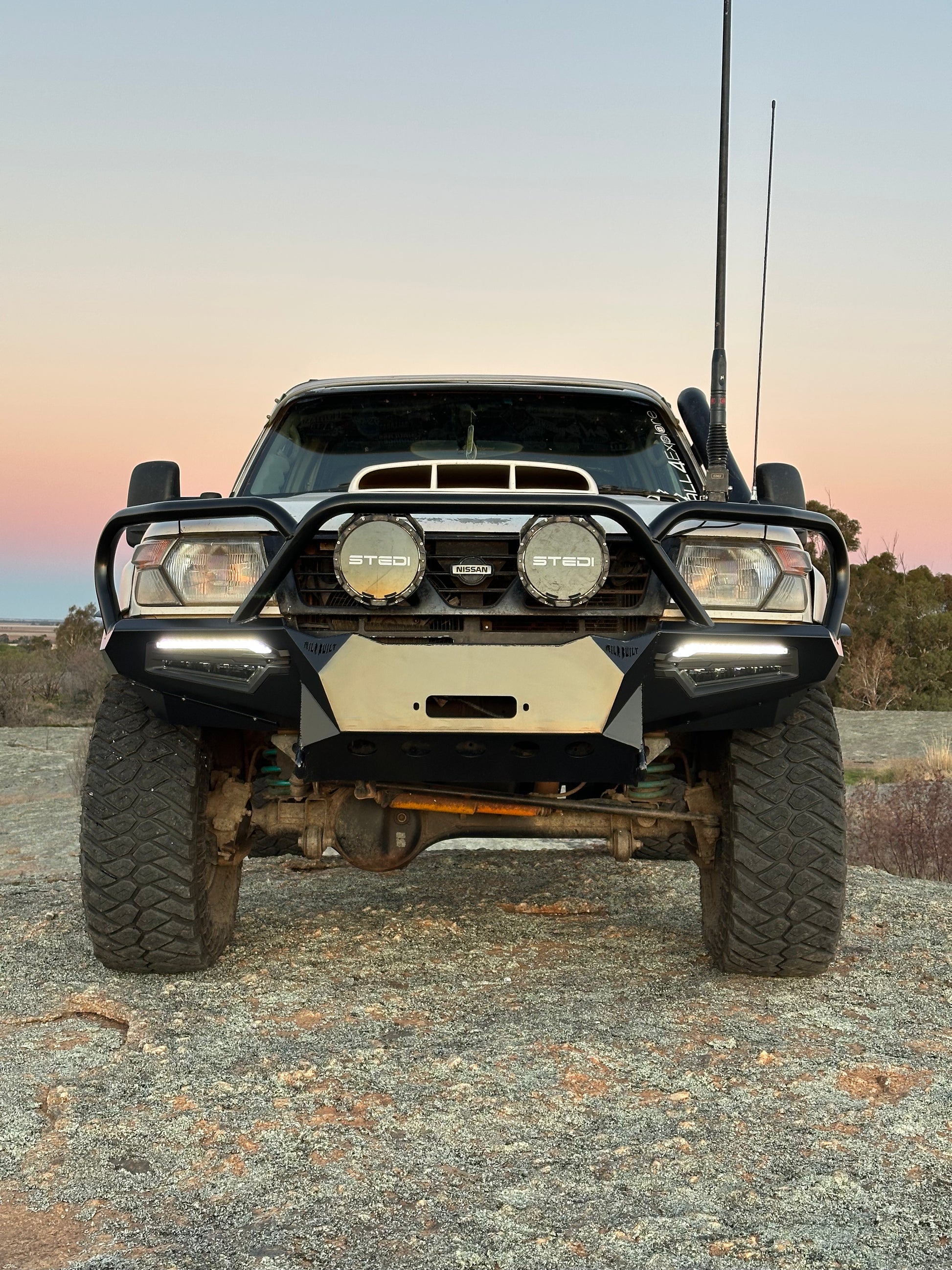

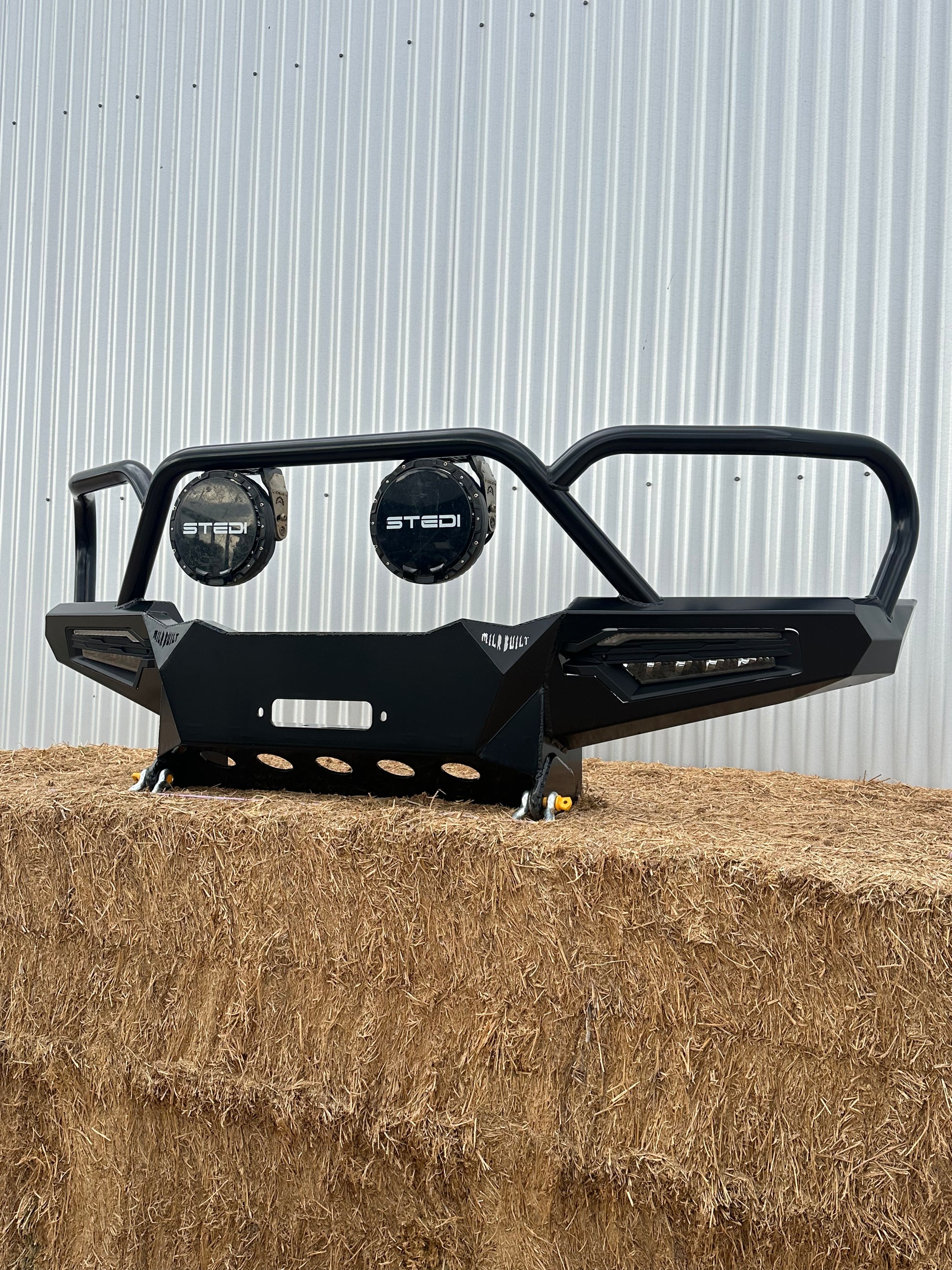

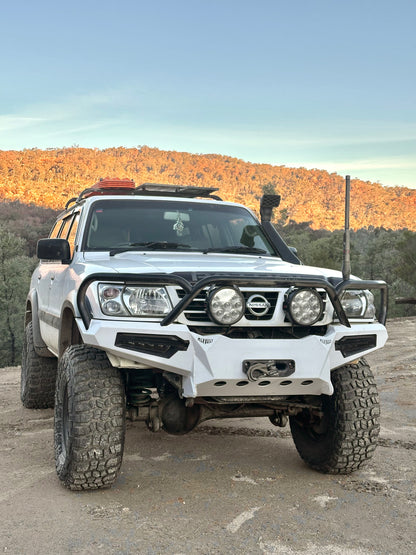

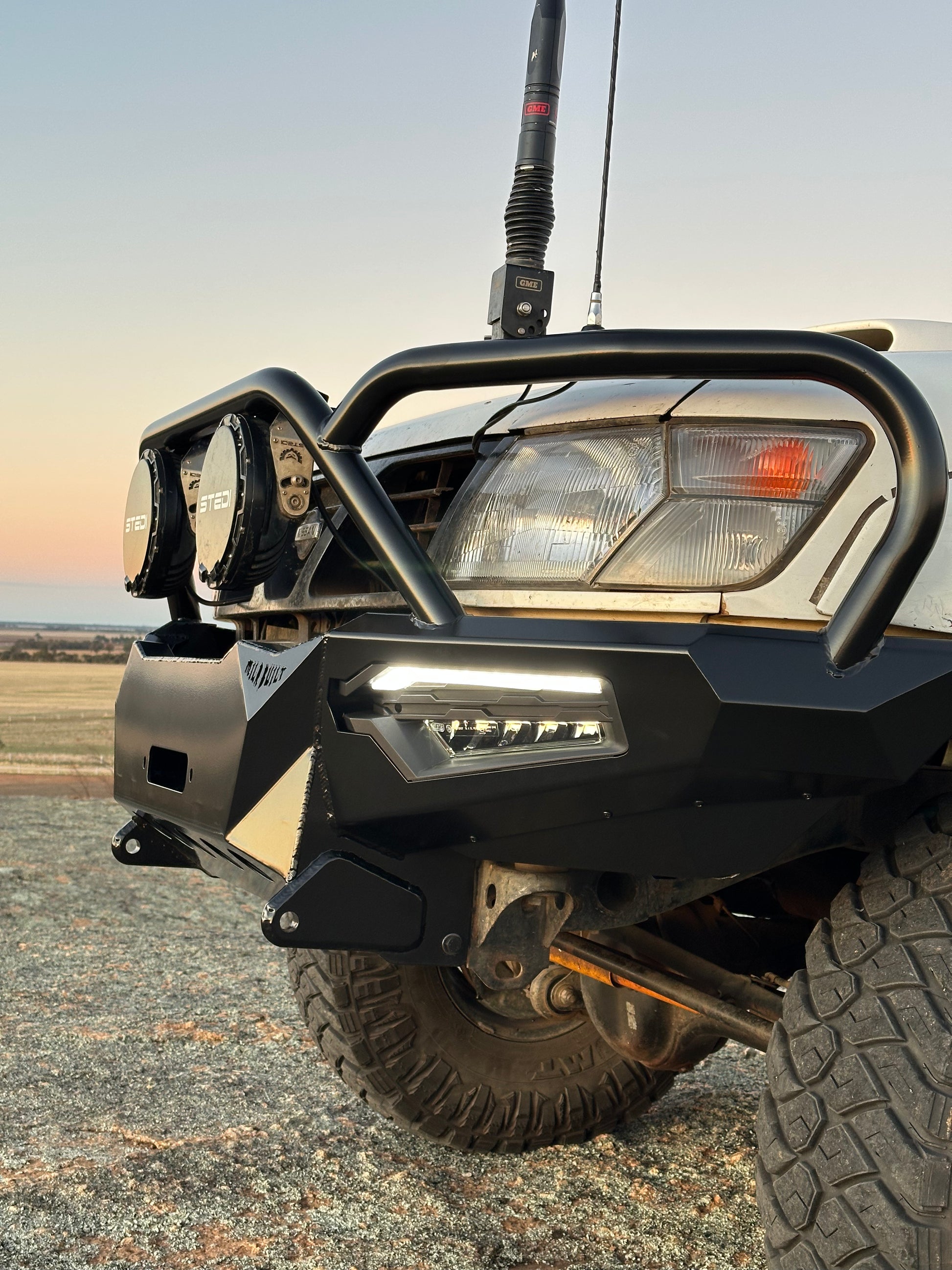

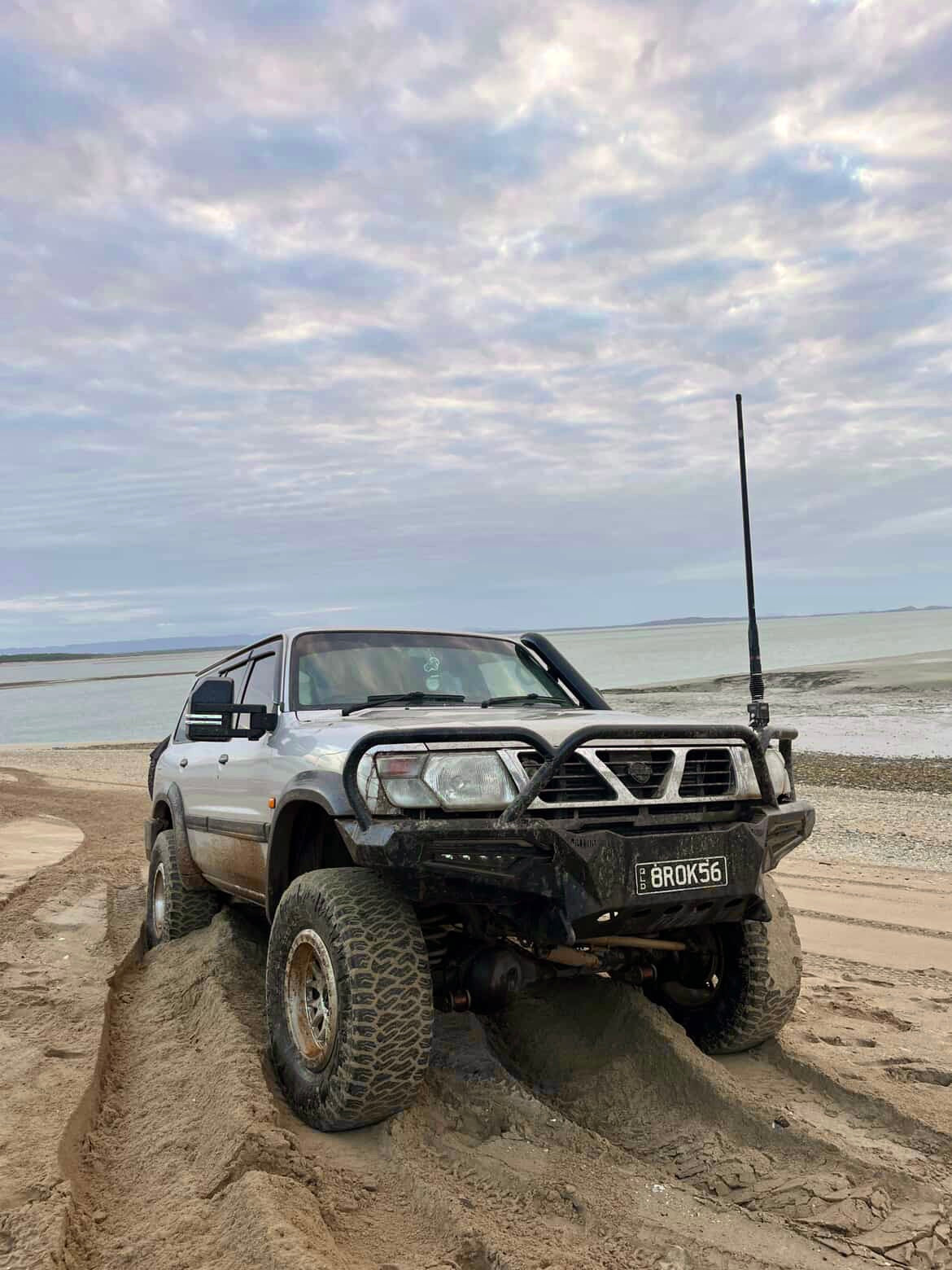

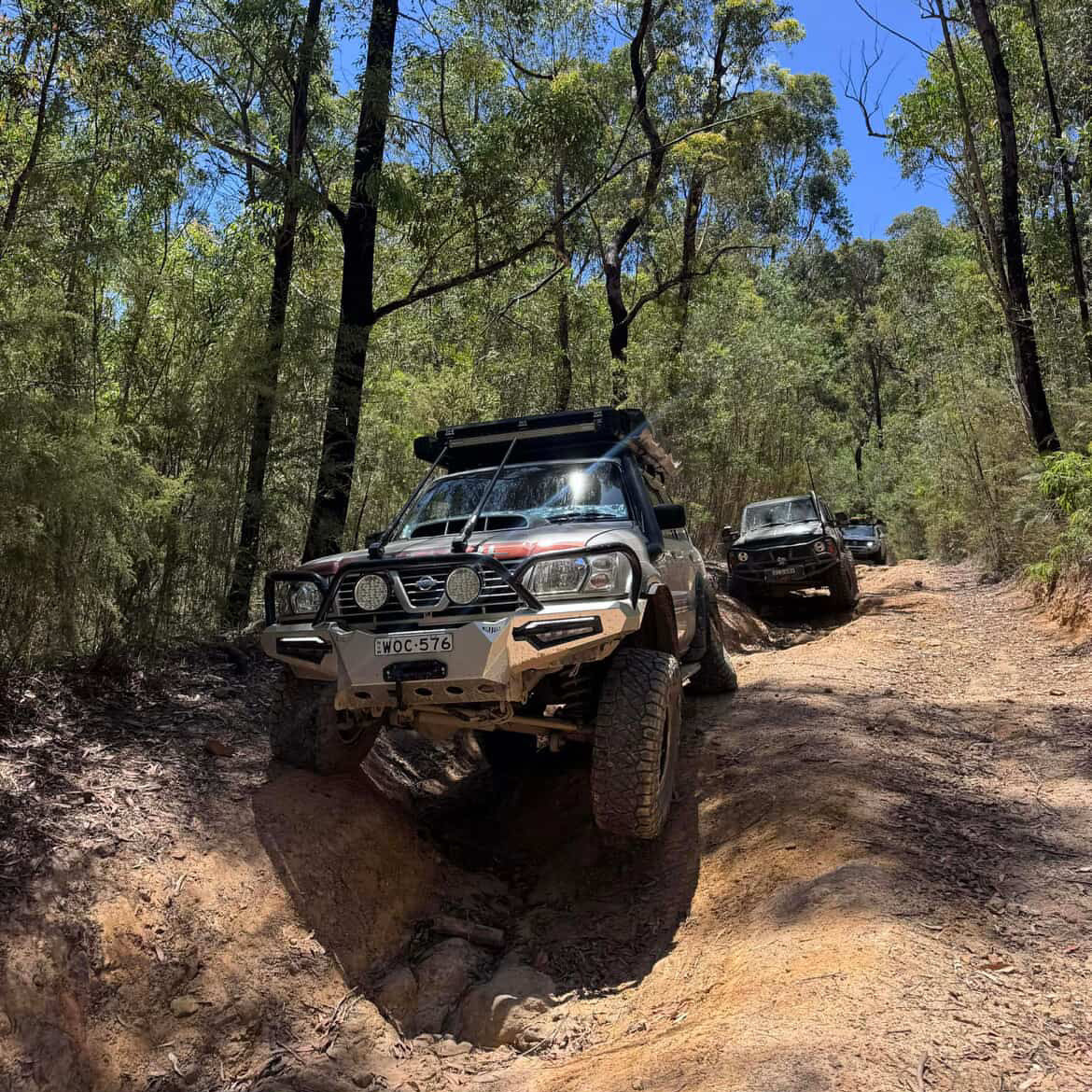

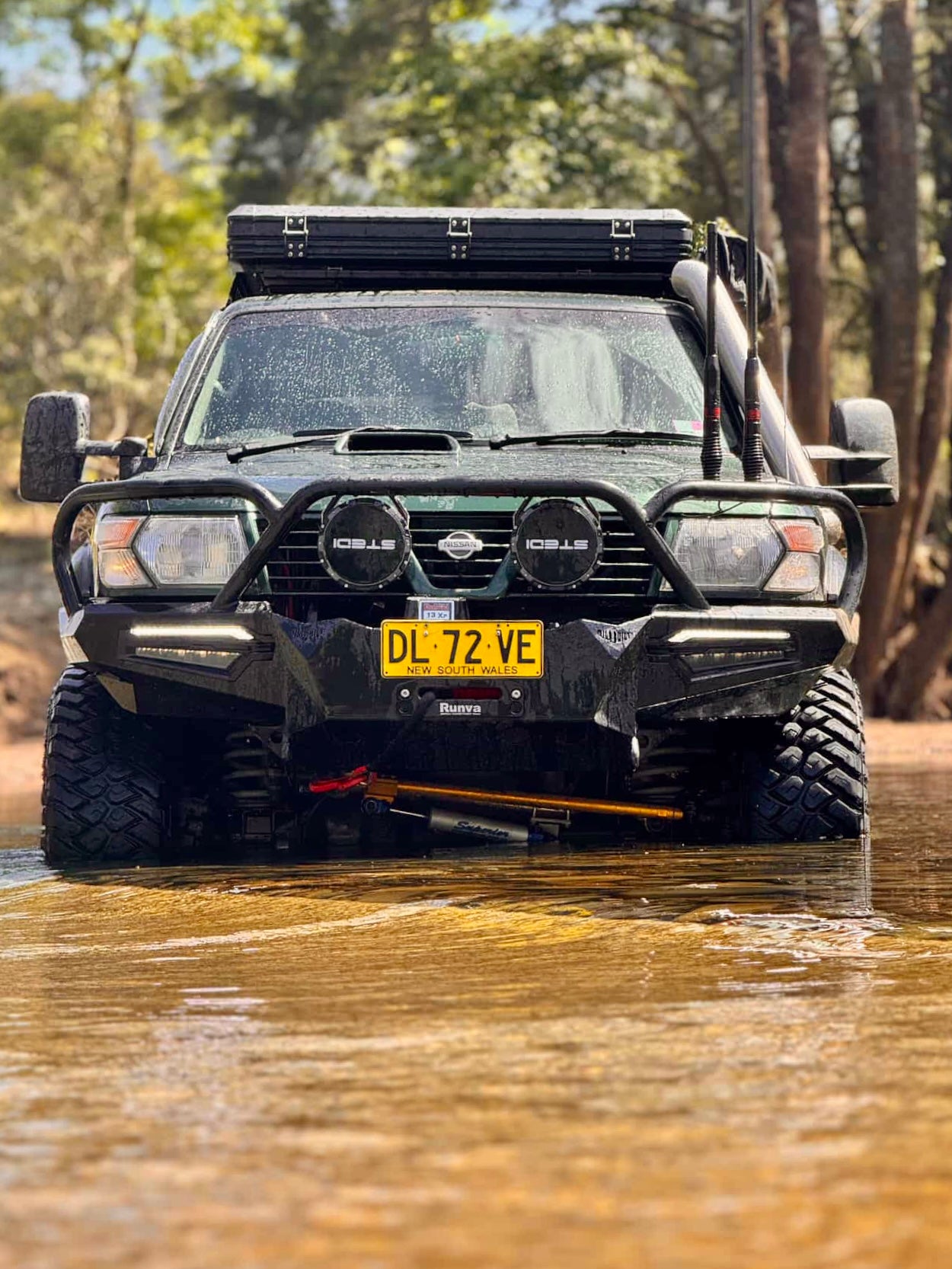

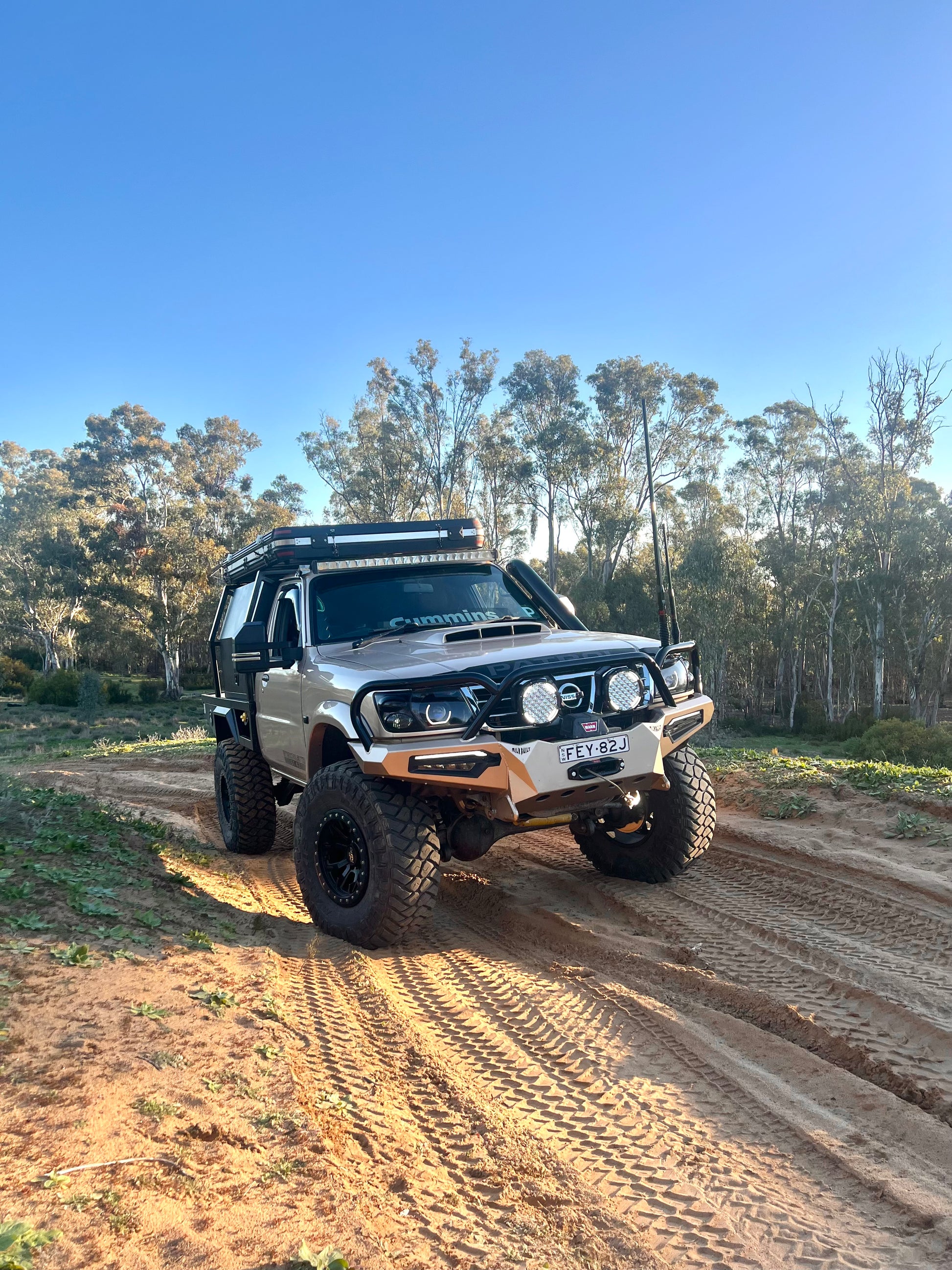

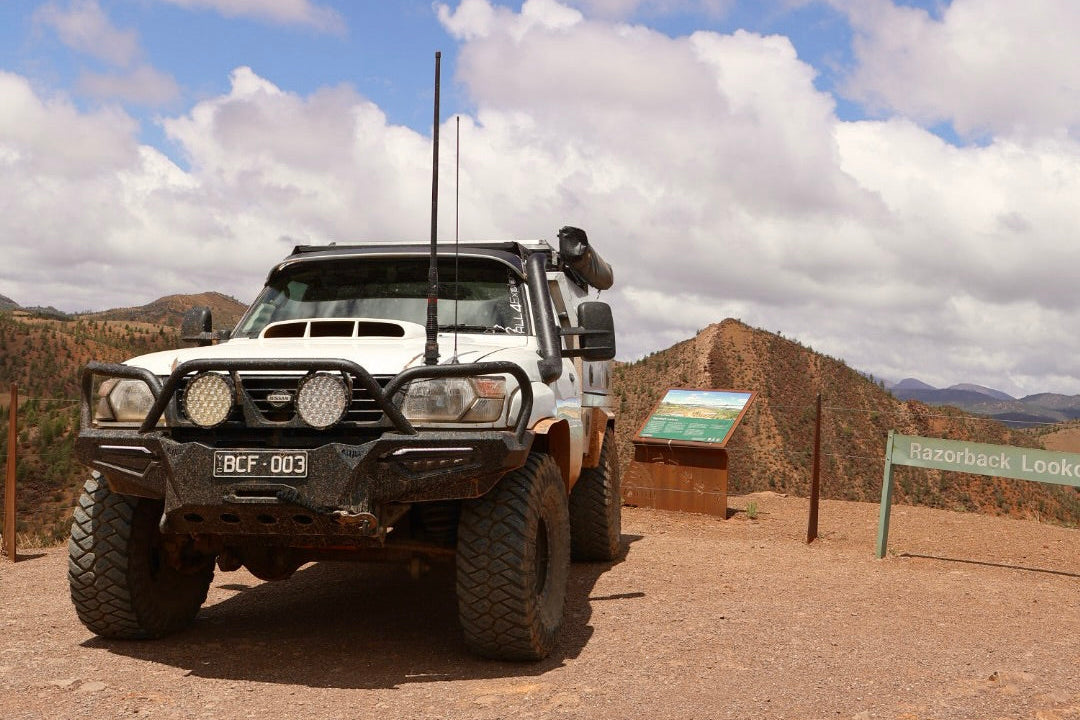

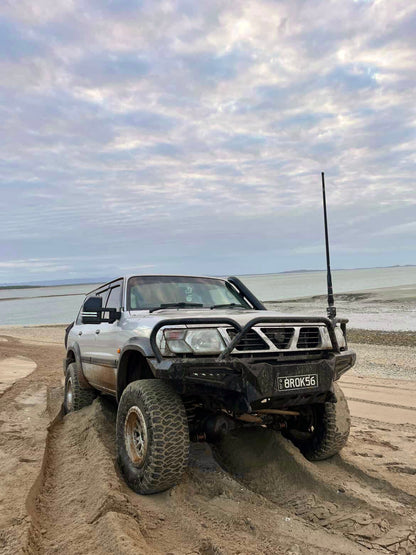

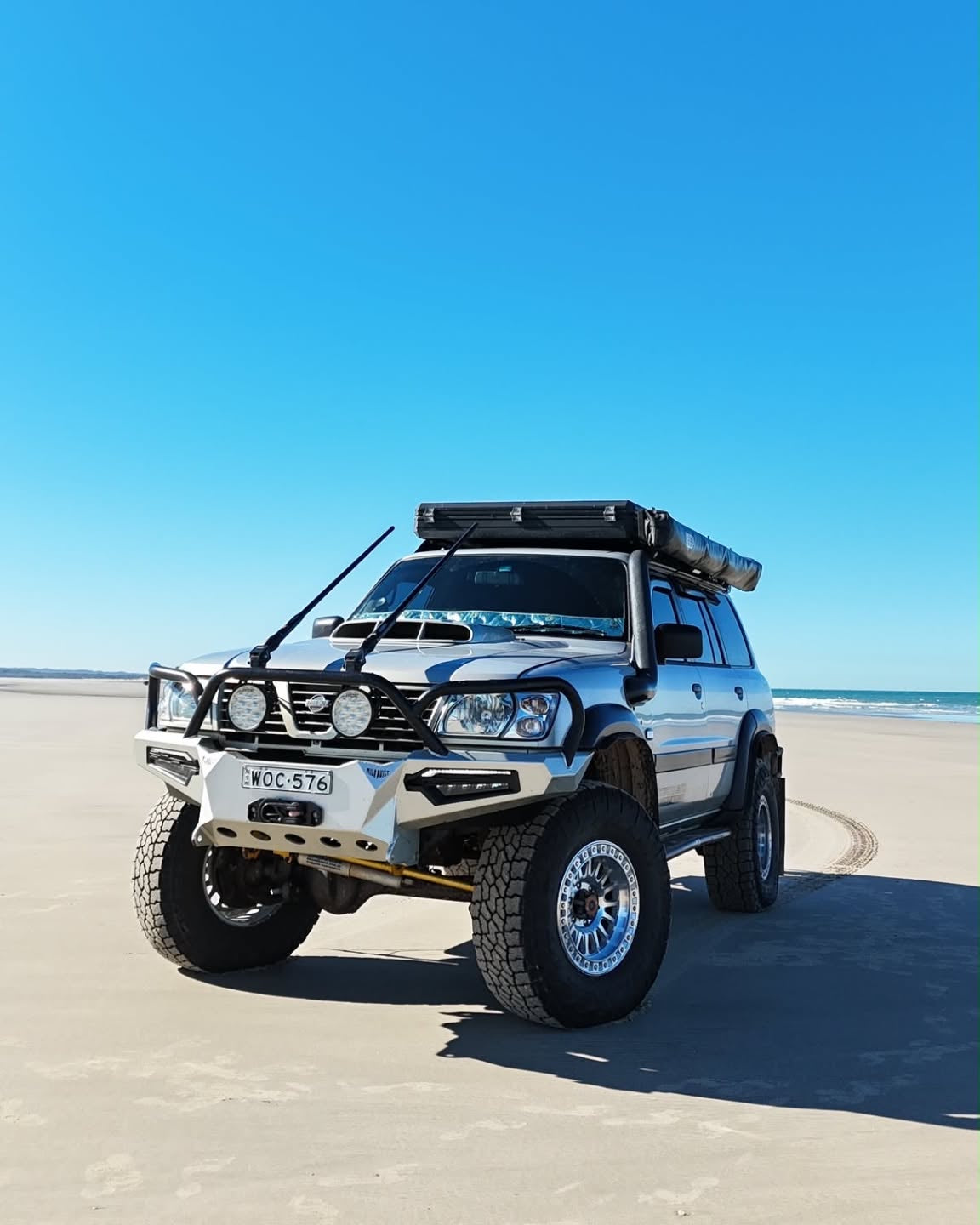

GU PATROL SERIES 1-3 BULLBAR

Color BLACK WHITE RAW

$3,400.00 AUD

SALE SOLD OUT

PRODUCT SPECIFICATIONS:

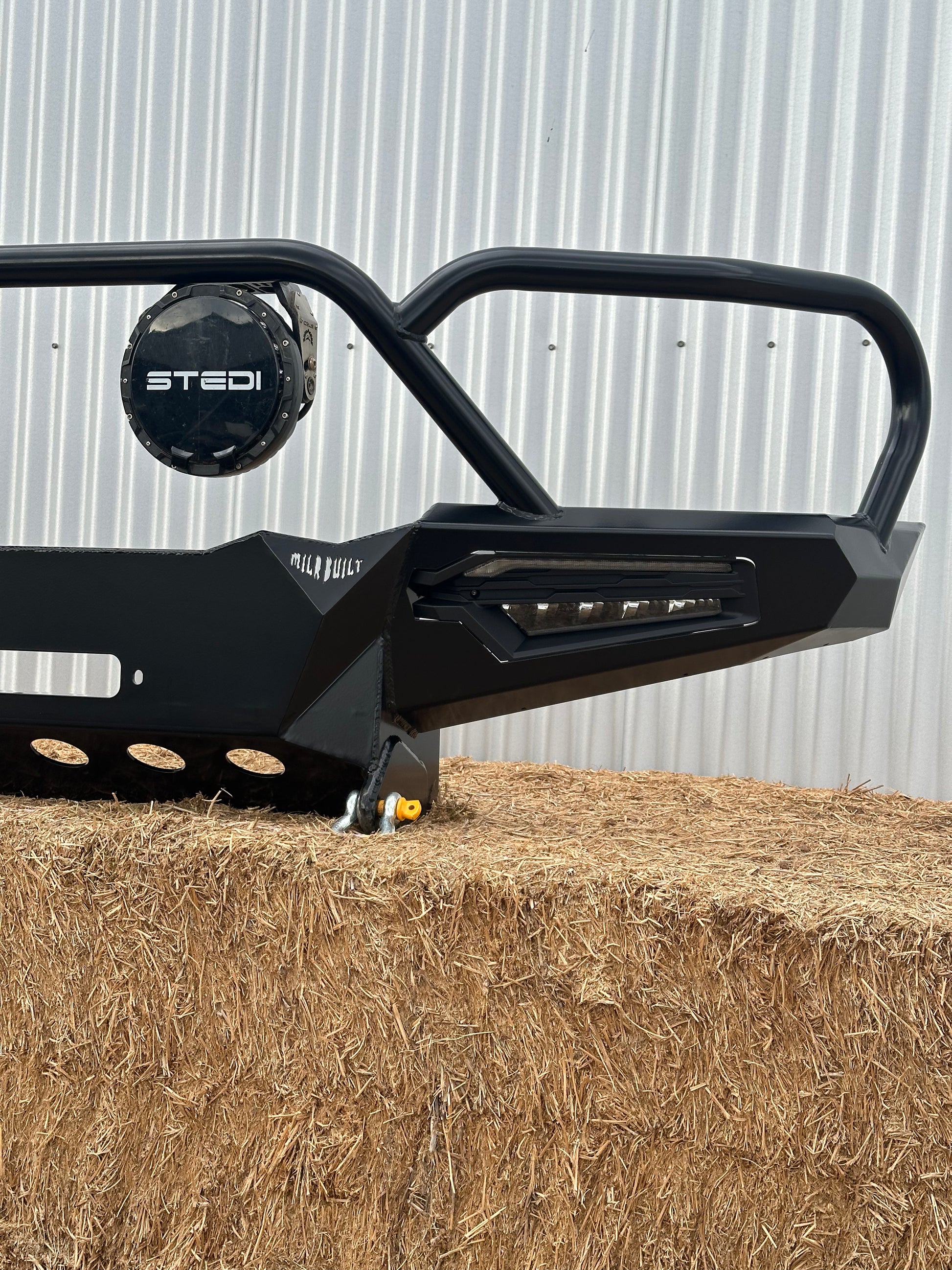

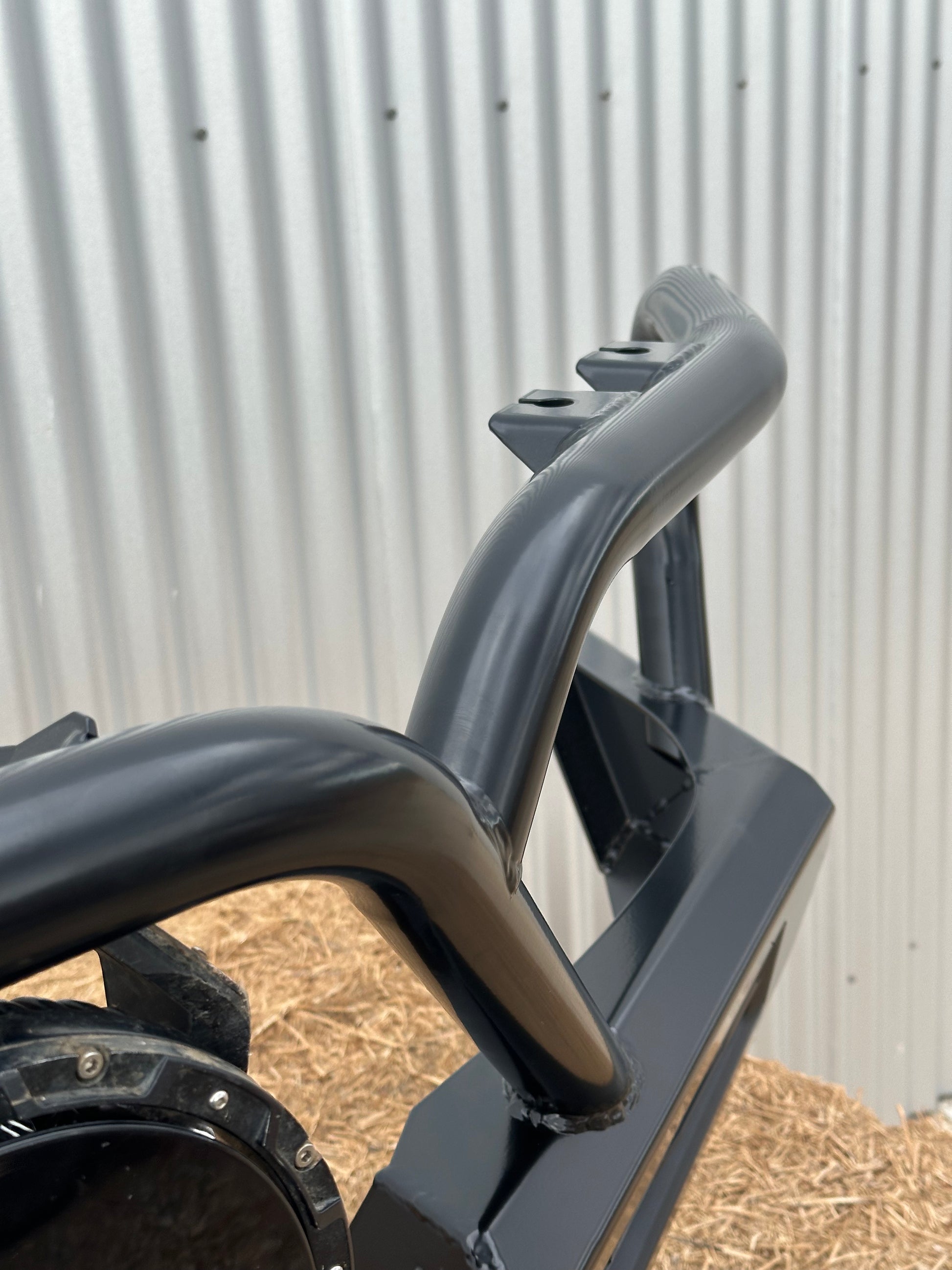

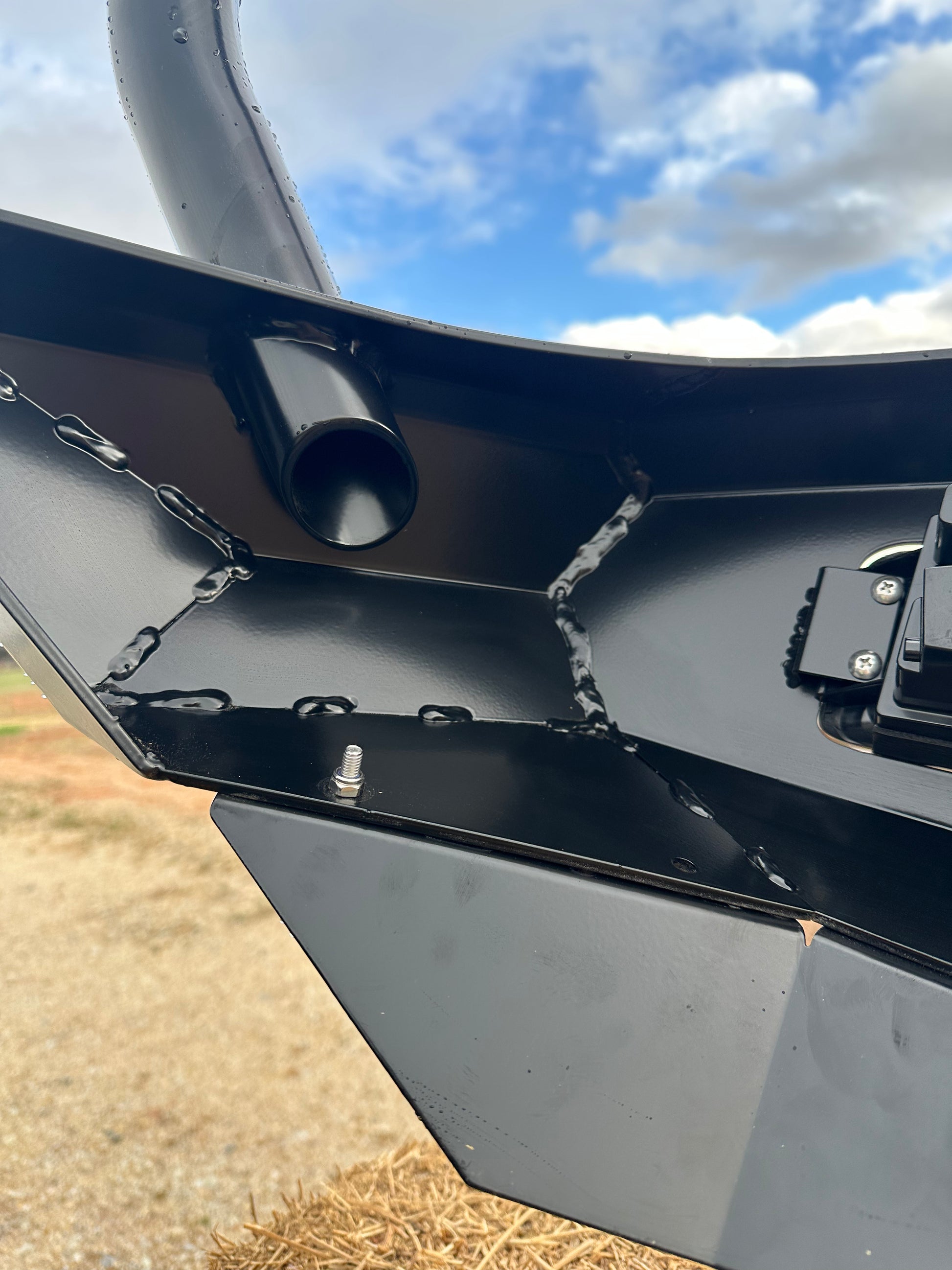

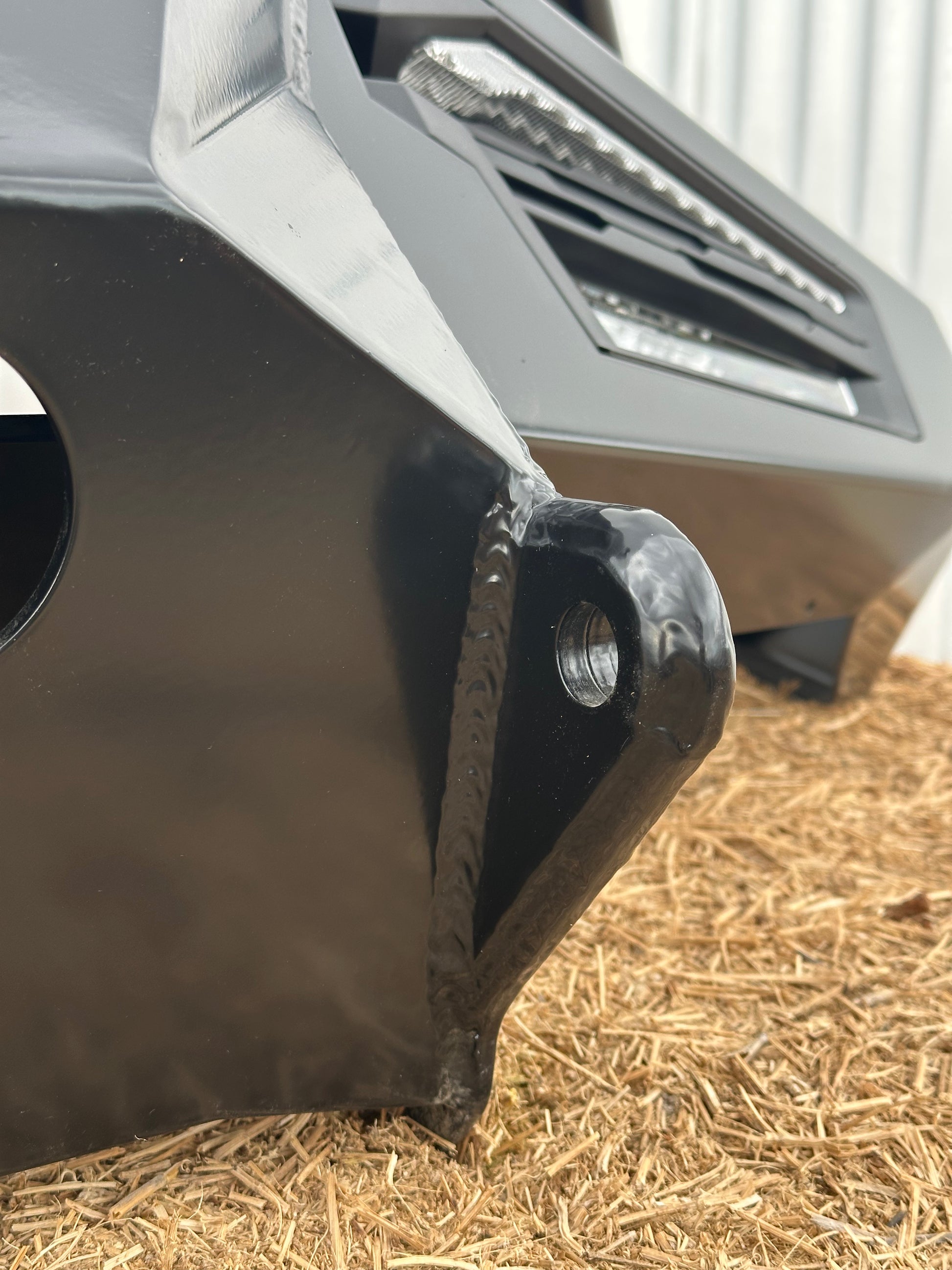

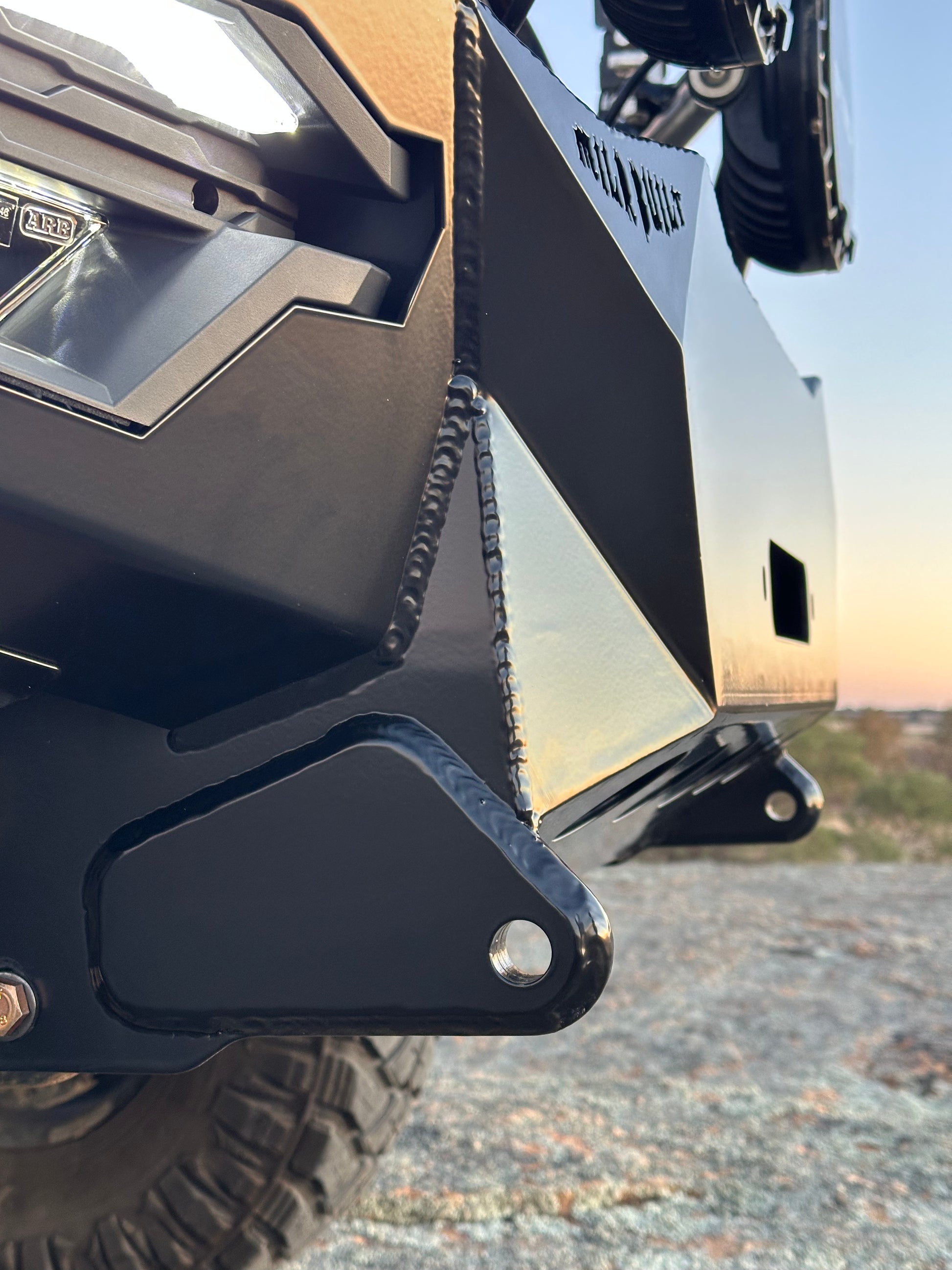

Total bar weight is 58kg. Hoops are constructed of 40nb 3.2mm wall thickness tube, CNC bent and welded top and bottom through the winglet plates. Front of bar is constructed from 5mm plate, with 6mm mounting plates to chassis and 8mm winch plate. Outer wings are constructed from 4mm FMS. 22mm thick recovery points. Designed with the best possible approach angle without having to cut your chassis for fitment. Both aerial and spotlight mounts have return folds for maximum strength. Spotlights and light bars can be mounted to bottom return lip if desired.

ADR INFORMATION:

Milr Built bullbars are NOT currently ADR approved and are only recommended for offroad usage as a comp bar. The requirements for ADR compliancy have been taken into consideration with the design.

WINCH FITMENT:

Milr Built bullbars fit most low mount winches dependent on model. Currently, it does not fit high mount winches, however if this is something you were after please send us an email and we can make an arrangement. If you are unsure about the fitment of your winch, please send us an email with the details of your winch and we will assist you.

POWDERCOATING:

Milr Built bullbars will come sand blasted, zinc coated, and powder coated. Standard satin black and white options. Option for raw, un-powder coated also available.

BULLBAR FITMENT:

There can be a large difference in chassis rail heights/alignment, therefore all mounting holes are slotted to ensure proper fitment. If there is a discrepancy between rail height, a packer can be placed between the bullbar and chassis rail to get desired height. Cutting of chassis is NOT required for fitment.

LIGHT CLUSTER INFORMATION:

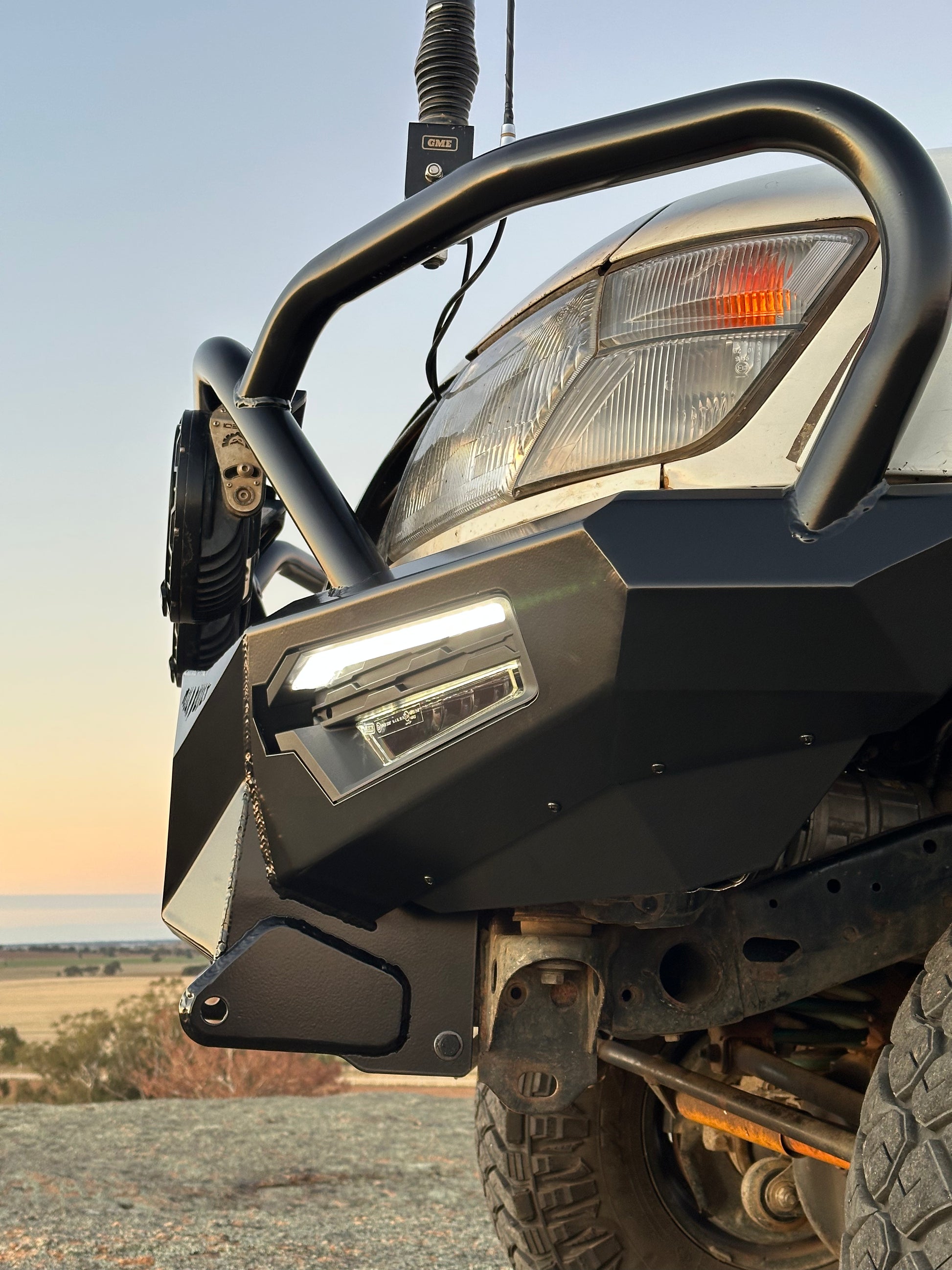

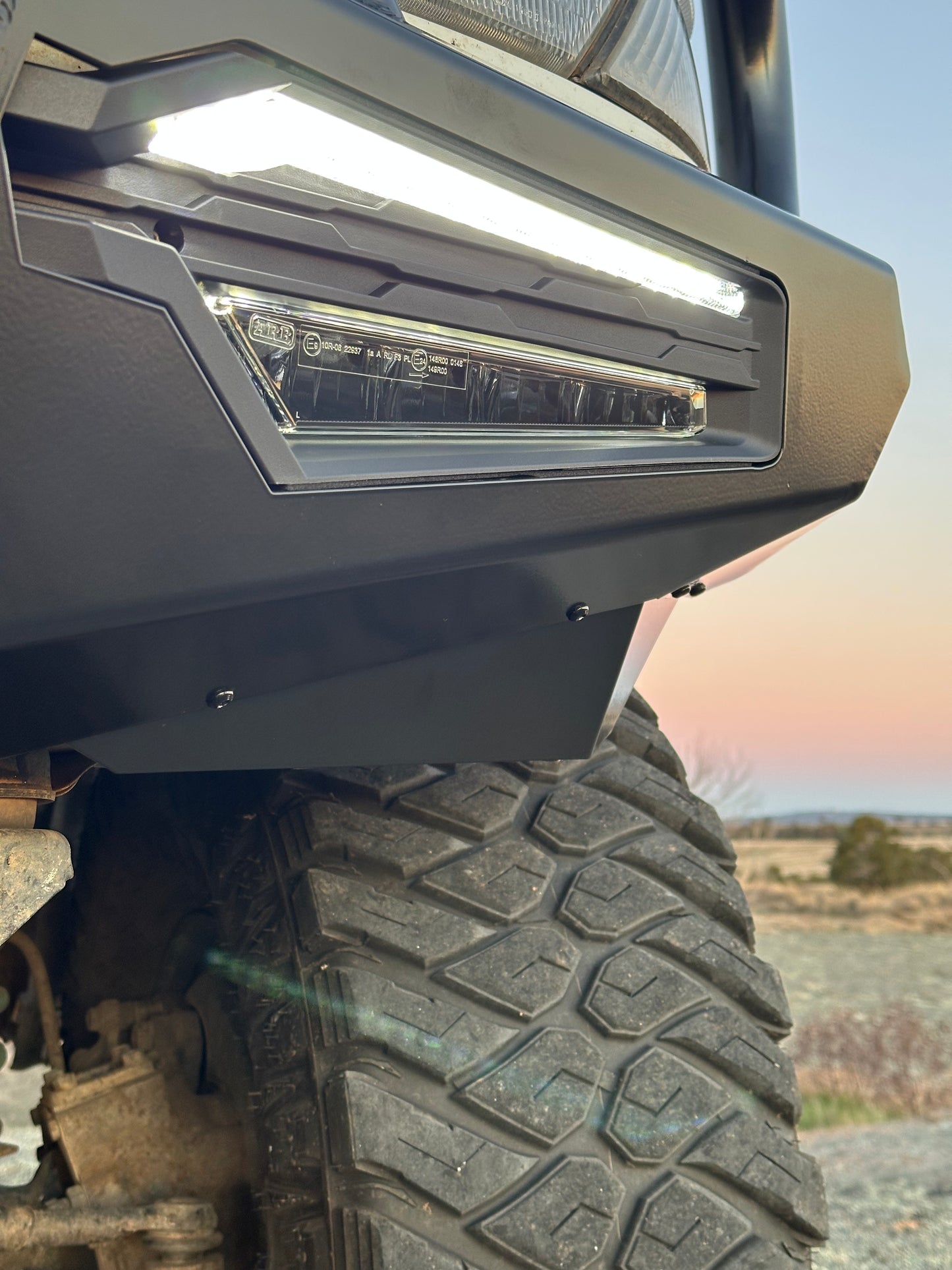

Inbuilt lights are ARB branded light clusters including sequential indicator, daytime running light (DRL) and fog light. Some models of patrols may not have factory fog lights, however if wanted, can be wired with fog light wiring kit.

PRODUCT INCLUSIONS:

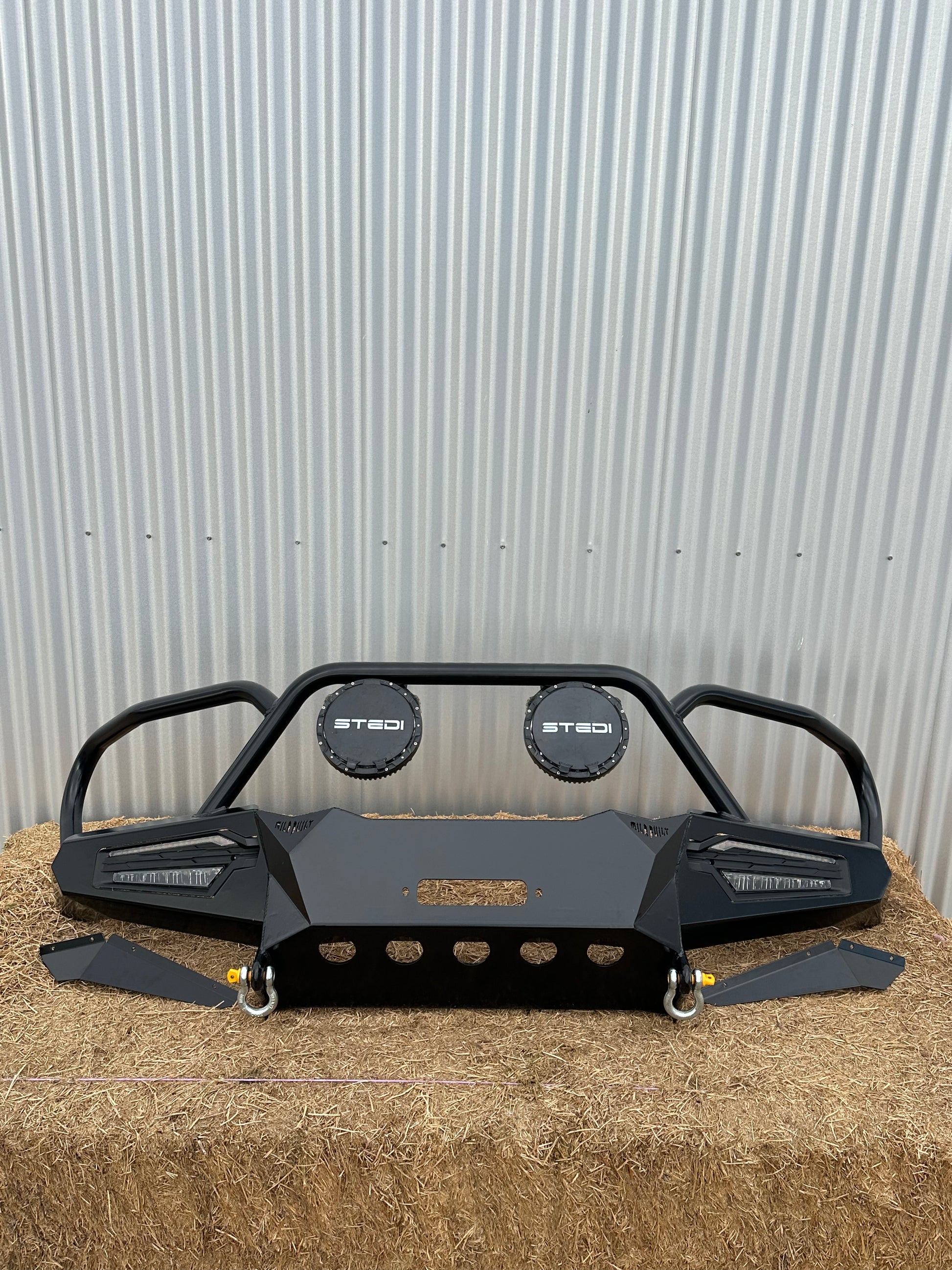

The bullbar will be shipped with the ARB light cluster attached, deutsch plug connector, splash guards and fitment hardware.
